Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | JIEXIN |
| Model Number | MFL WT80-16mm-100mm |
| Order Information | Sample and batch orders available; confirm MOQ with quotation |
| Lead Time | Confirmed according to size, material and order quantity |
PRODUCT DESCRIPTION
Metal Bellow Cartridge Mechanical Seal 16mm 100mm Burgmann MFLWT80
Burgmann MFLWT80 Replacement Mechanical Seal Metal Bellow Mechanical Seal Menggantikan
Basic Info.
| Model NO. | MFLWT80 | Shipment Terms | Fob Shanghai/Ningbo |
| Service Branches | USA, Australia, Shanghai, Wenzhou, Canton |
Trademark | JIEXIN, Neutral or customised |
| Specification | 16mm~100mm | Origin | Made in China |
1. Structure Description:
Equivalent to Burgmann MFLWT80
Welded metal bellows design with totque transmission
2. Operating Limits:
| Temperature:-20—400℃ |
| Speed: 20m/s |
| Presure: 25bar |
| Standard size: 16-100mm |
3. Material:
| Seal ring: Car,Sic,Ssic,TC |
| Secondary seal: Carbon graphite |
| Spring and Metal parts:304,316,AM350,HAST.C,Inconel 718,Titanium |

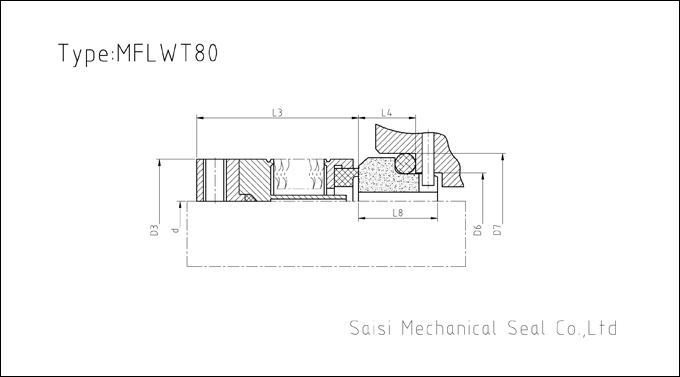

| SS-MFLWT80 Dimensions(mm) | ||||||
| d | D3 | D6 | D7 | L3 | L8 | L4 |
| 16 | 38.0 | 29.0 | 35.0 | 46.5 | 19.5 | 11.5 |
| 18 | 40.0 | 31.0 | 37.0 | 46.5 | 19.5 | 11.5 |
| 20 | 42.0 | 34.0 | 40.0 | 46.5 | 19.5 | 11.5 |
| 22 | 44.0 | 37.0 | 43.0 | 46.5 | 19.5 | 11.5 |
| 24 | 46.0 | 37.0 | 43.0 | 46.5 | 19.5 | 11.5 |
| 25 | 47.0 | 39.0 | 45.0 | 46.5 | 19.5 | 11.5 |
| 28 | 50.0 | 42.0 | 48.0 | 46.5 | 19.5 | 11.5 |
| 30 | 52.0 | 44.0 | 50.0 | 46.5 | 19.5 | 11.5 |
| 32 | 54.0 | 49.0 | 56.0 | 46.5 | 22.0 | 14.0 |
| 33 | 55.0 | 49.0 | 56.0 | 46.5 | 22.0 | 14.0 |
| 35 | 57.0 | 51.0 | 58.0 | 46.5 | 22.0 | 14.0 |
| 38 | 60.0 | 54.0 | 61.0 | 46.5 | 22.0 | 14.0 |
| 40 | 66.0 | 56.0 | 63.0 | 47.5 | 22.0 | 14.0 |
| 43 | 69.0 | 59.0 | 66.0 | 47.5 | 22.0 | 14.0 |
| 45 | 71.0 | 62.0 | 70.0 | 47.5 | 23.0 | 15.0 |
| 48 | 74.0 | 65.0 | 73.0 | 47.5 | 23.0 | 15.0 |
| 50 | 76.0 | 67.0 | 75.0 | 47.5 | 23.0 | 15.0 |
| 53 | 79.0 | 70.0 | 78.0 | 47.5 | 23.0 | 15.0 |
| 55 | 81.0 | 72.0 | 80.0 | 47.5 | 23.0 | 15.0 |
| 58 | 85.0 | 75.0 | 83.0 | 53.0 | 23.0 | 15.0 |
| 60 | 87.0 | 77.0 | 85.0 | 53.0 | 23.0 | 15.0 |
| 63 | 90.0 | 81.0 | 90.0 | 53.0 | 26.0 | 18.0 |
| 65 | 92.0 | 83.0 | 92.0 | 53.0 | 26.0 | 18.0 |
| 68 | 95.0 | 88.0 | 97.0 | 53.0 | 26.0 | 18.0 |
| 70 | 97.0 | 88.0 | 97.0 | 53.0 | 26.0 | 18.0 |
| 75 | 102.0 | 95.0 | 105.0 | 52.8 | 26.2 | 18.2 |
| 80 | 107.0 | 100.0 | 110.0 | 52.8 | 26.2 | 18.2 |
| 85 | 112.0 | 105.0 | 115.0 | 52.8 | 26.2 | 18.2 |
| 90 | 117.0 | 110.0 | 120.0 | 53.8 | 25.2 | 17.2 |
| 95 | 122.0 | 115.0 | 125.0 | 53.8 | 25.2 | 17.2 |
| 100 | 127.0 | 122.2 | 134.3 | 54.0 | 30.0 | 20.0 |
