Elastomer Bellows Spring Mechanical Seal FBD John Crane Pump Seals
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | JIEXIN |
| Model Number | FBD |
| Order Information | Sample and batch orders available; confirm MOQ with quotation |
| Lead Time | Confirmed according to size, material and order quantity |
Product Description

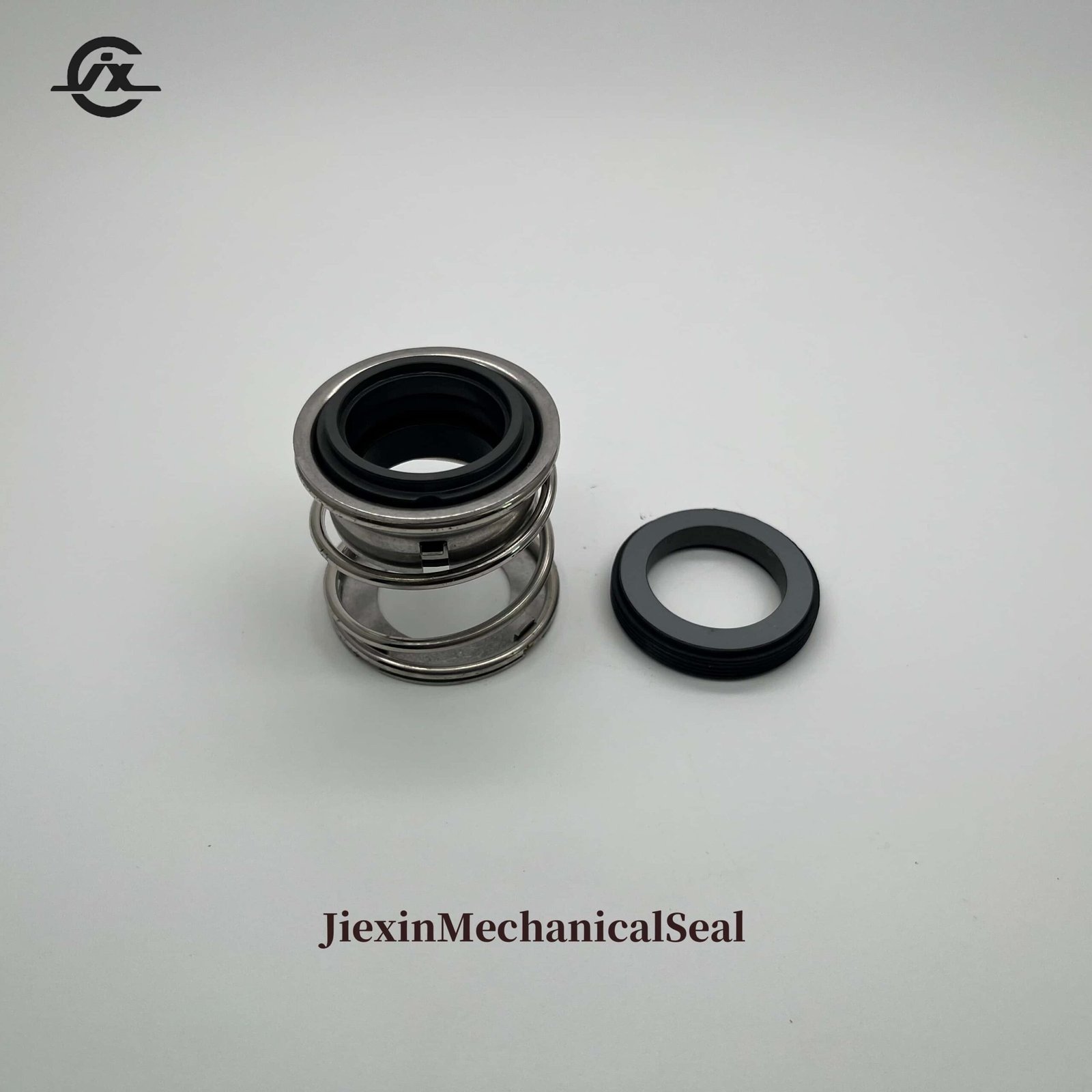

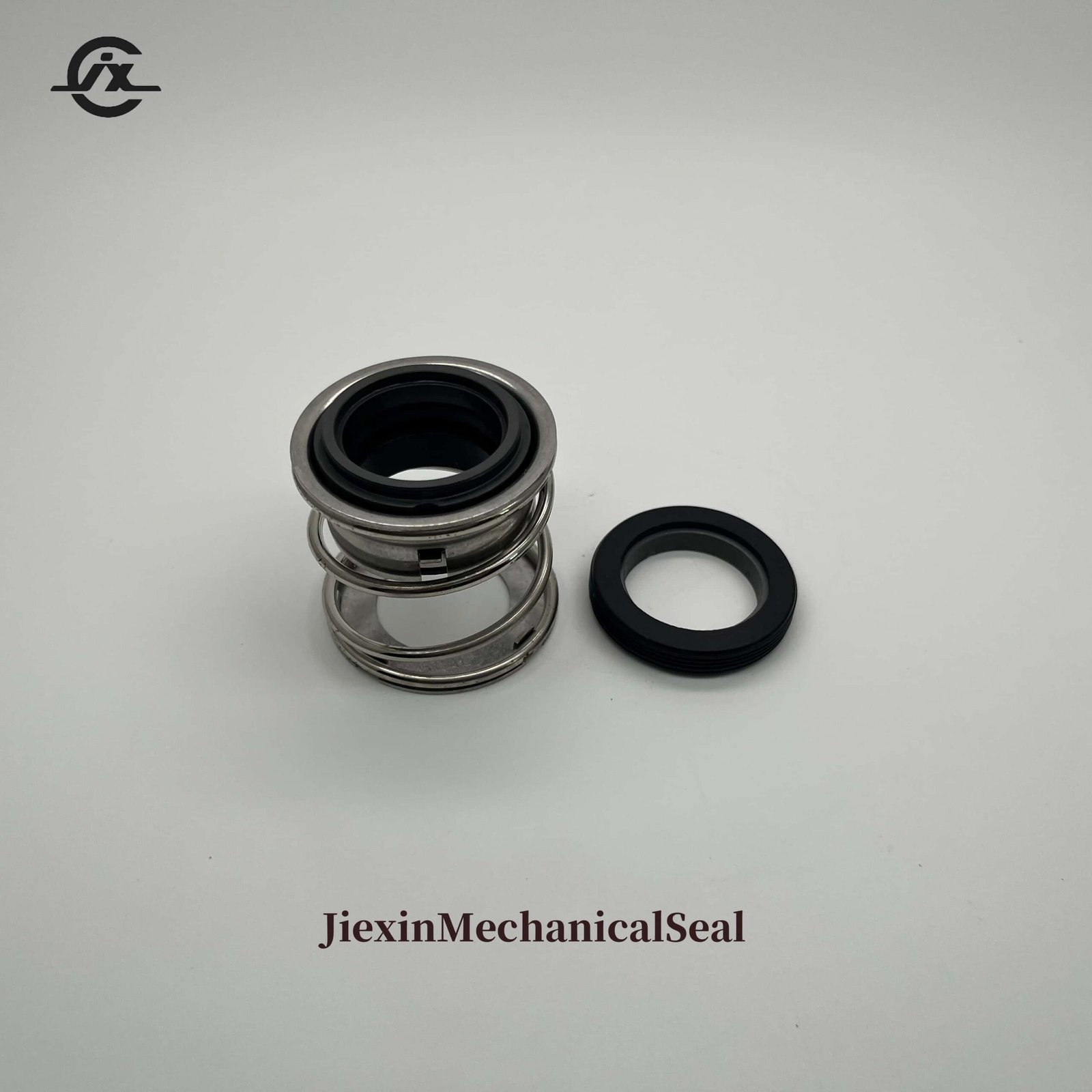

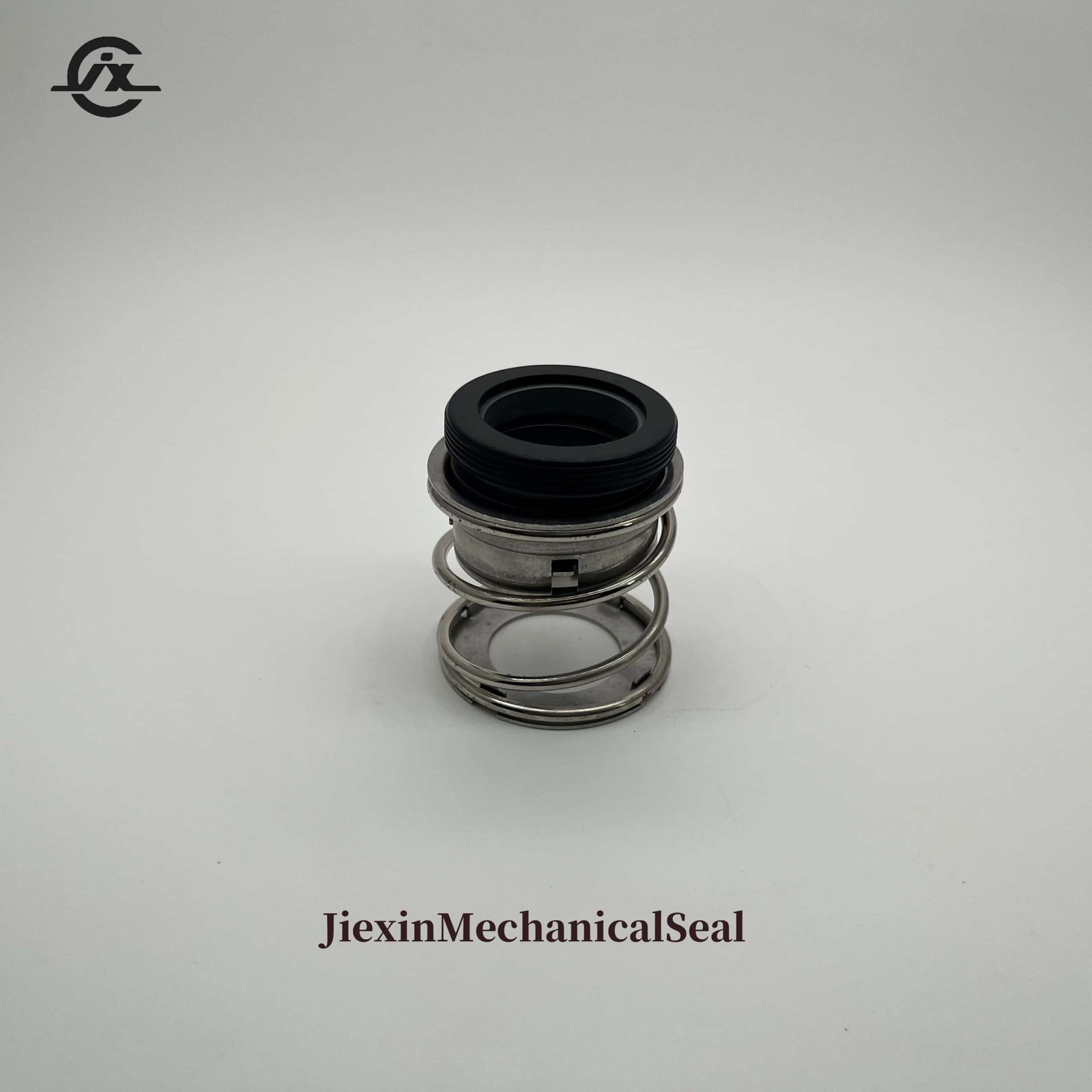

Elastomer Bellows Spring Mechanical Seal FBD John Crane Pump Seals
Type FBD Single Spring Water Pump Seal Replace John Crane
Basic Info.
| Model NO. | Metal bellows seal | Manifold Pump Seal | FBD Seal |
| Grundfos Pump Seal | Rubber Bellow Seal | Che Pump Seal | Mechanical Seal |
| Flygt pump seal | Pump Seal | Industrial Pump | Oil pump seal |
| ABS Pump Seal | Blackmer Seal | Food pump seal | CAR/SIC/TC/NBR/ |
| Lowara Pump Seal | O-ring | Oil pump seal | SS304/316 |
| Automotive pump seal | Skeleton oil seal | Specification | 16mm ~ 100mm |
| Origin | China | HS Code | 84842000 |
Features:
FBD mechanical seal series is uneasy to be blocked due to its single spring structure. It has advanced rotating ring floatability so that reduced compensational resistance. This series is suitable for oil, water and other weak corrosive medium.
With full enclosed elastomer bellows design
Insensitive to shaft play and run out
Bellows should not twist due to bi-directional and robust drive
Single seal and single spring
Conform with DIN24960 standard.
Operating Limited:
| Shaft diameter | 16~100mm |
| Pressure | up to 1.2Mpa |
| Temperature | -20~180°C |
| Slidingvelocity | 10m/s |
Material:
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316 |
| Stationary Ring | Car / SIC /TC/Cer |
Application:
| Water and waste water technology |
| Chemical industry |
| Refining technology |
| Dirty, abrasive and solid containing media |
| Fugitive hydrocarbons (no API seal!) |
| Sticky and stringy media |
| Chemical standard pumps |
| Sewage pumps |
| Model | d | D | D1 | L1 | L2 |
| BGM FBD-16 | 16 | 34 | 30 | 8 | 25.2 |
| BGM FBD-18 | 18 | 36.8 | 32 | 8 | 25.2 |
| BGM FBD-20 | 20 | 38.8 | 34 | 8 | 25.2 |
| BGM FBD-22 | 22 | 41.5 | 36 | 8 | 25.2 |
| BGM FBD-25 | 25 | 44.8 | 39 | 8 | 26.2 |
| BGM FBD-28 | 28 | 48.5 | 43 | 8 | 26.2 |
| BGM FBD-30 | 30 | 52 | 48 | 8 | 26.2 |
| BGM FBD-35 | 35 | 57 | 53 | 10 | 30.2 |
| BGM FBD-40 | 40 | 67 | 58 | 10 | 34.2 |
| BGM FBD-45 | 45 | 73 | 63 | 10 | 36.2 |
| BGM FBD-50 | 50 | 79 | 68 | 10 | 41.2 |
| BGM FBD-55 | 55 | 84 | 73 | 12 | 41.2 |
| BGM FBD-60 | 60 | 90 | 79 | 12 | 41.2 |
| BGM FBD-65 | 65 | 98.5 | 86 | 12 | 49.2 |
| BGM FBD-70 | 70 | 103.5 | 91 | 12 | 52.2 |
| BGM FBD-75 | 75 | 110.5 | 96 | 12 | 52.2 |
| BGM FBD-80 | 80 | 120 | 105 | 14 | 56.2 |
| BGM FBD-85 | 85 | 125 | 110 | 14 | 56.2 |
| BGM FBD-90 | 9o | 132 | 115 | 14 | 56.2 |
| BGM FBD-95 | 95 | 137 | 120 | 14 | 56.2 |
| BGM FBD-100 | 100 | 144 | 125 | 14 | 62.2 |
| BGM FBD-110 | 110 | 157 | 135 | 16 | 62.2 |
| BGM FBD-120 | 120 | 169.5 | 145 | 16 | 73 |
Company Profile
Guangdong Jiexin Seals Co., Ltd. is an enterprise specializing in the research and development, manufacturing and sales of mechanical seal products. The company has a first-class domestic R&D team, advanced automated production equipment and advanced testing equipment. The company’s products cover pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals,stainless steel mechanical seals. They are widely used in: aviation, aerospace, petroleum, chemical, electric power, metallurgy, food, pharmaceuticals, sewage treatment, agricultural irrigation, automotive water pumps and other industries. The company’s products have excellent performance, excellent workmanship, and durability, and are deeply trusted and praised by domestic and foreign users.
