Dongfang 128-25 30 35mm Water Pump Mechanical Seal For Plain Shafts
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | JIEXIN |
| Model Number | YM128-20/25/30/35/40/45/50/55/60 |
| Order Information | Sample and batch orders available; confirm MOQ with quotation |
| Lead Time | Confirmed according to size, material and order quantity |
Product Description

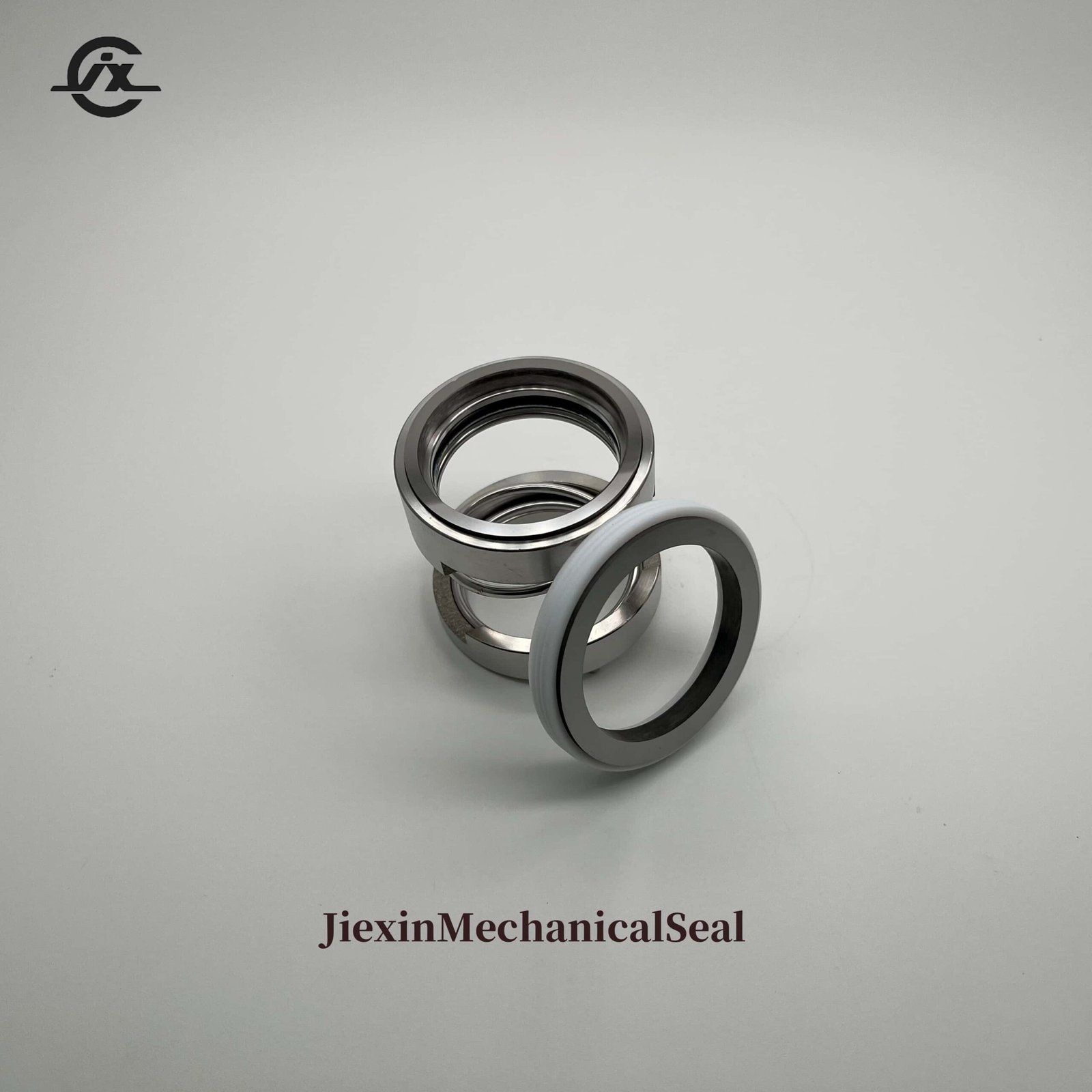

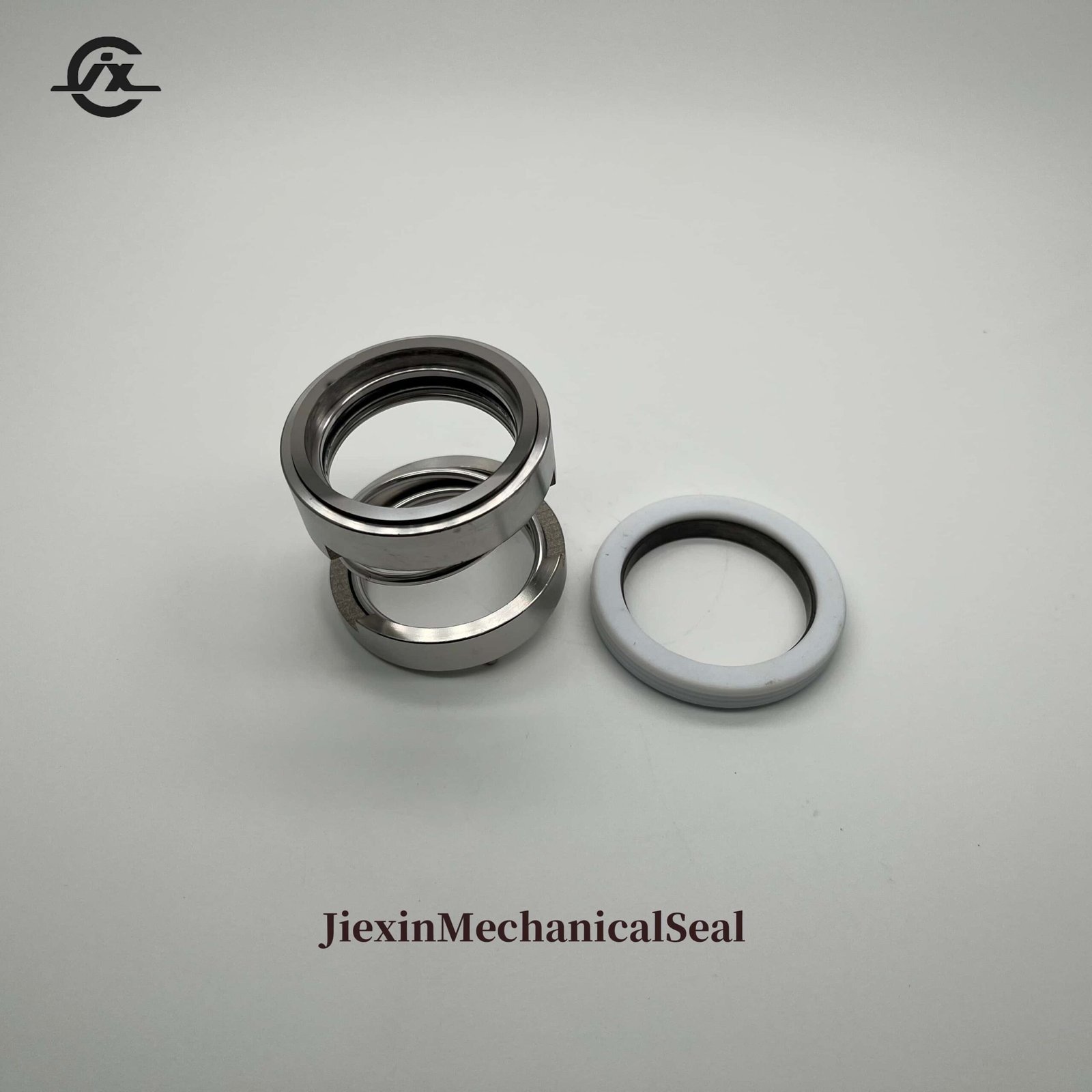

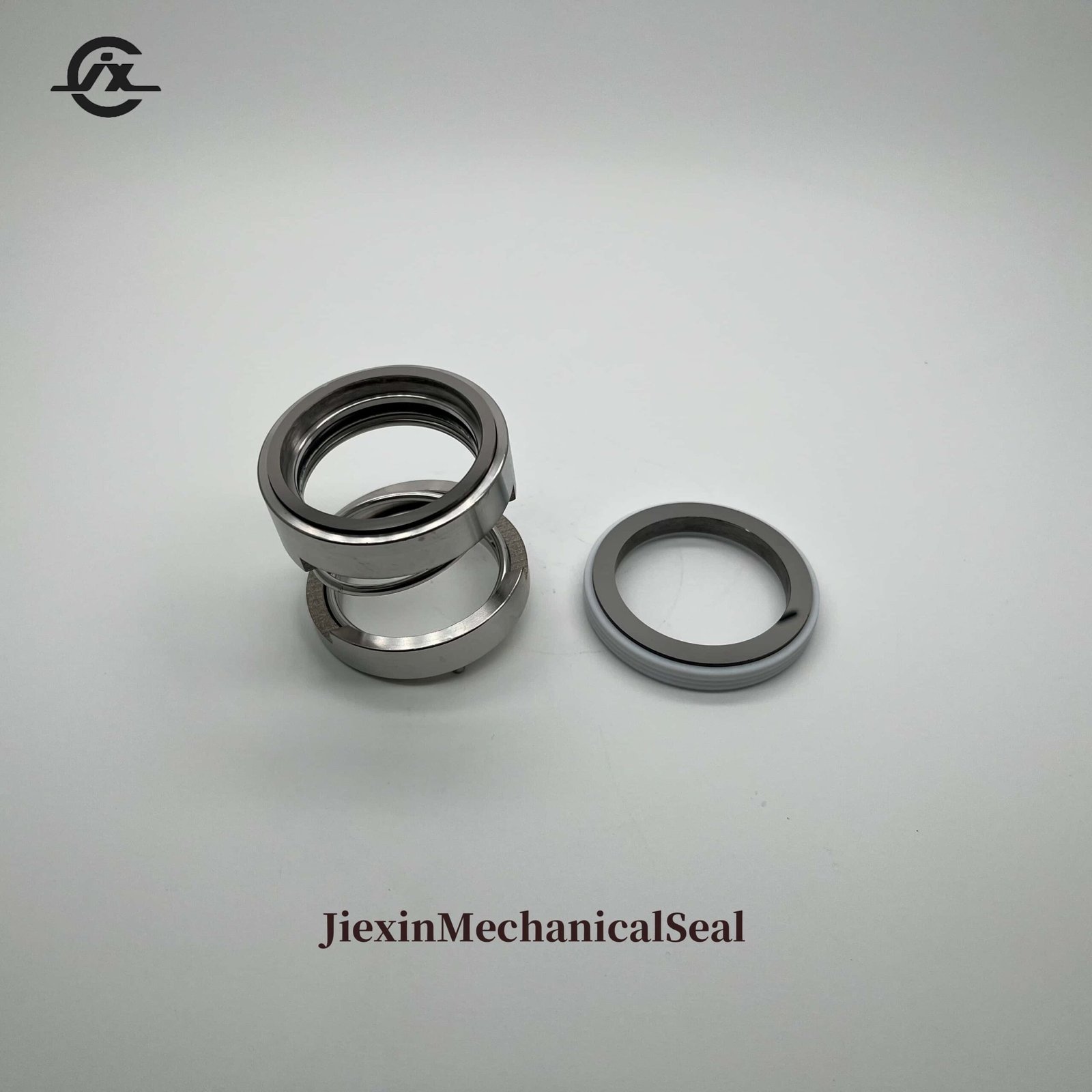

Dongfang 128-25 30 35mm Water Pump Mechanical Seal For Plain Shafts
Mechanical Seal Dongfang Pump Seal Type 128-25 30 35mm Mechanical Seal
| Model NO. | BGM 128-30 | Balance | Unbalanced |
| Usage | Wide | Trademark | JIEXIN |
| Transport Package | Carton or Plywood Box | Specification | SGS |
| Origin | Shanghai China | HS Code | 84842000 |
BGM128 SERIES MECHANICAL SEAL
1. Applicable Range:
| Pressure in the seal chamber: | 0-1.2MPa |
| Temperature in the seal chamber: | -20ºC—–180ºC |
| Linear Velocity: | ≤ 10m/s |
| Medium: | water,polluted water,oil and minor corrosive liquid |
| Static ring code: | G9 |
2. Features:
For plain shafts
More reliable transimission
High flexibility due to wide offer on materials
Dimension adaptions and additional seats available
Promise of all material quality is good as CE certified
3. Material Combination:
Rotating face: silicon carbide,graphite,tungsten carbide.
Stationary face: silicon carbide, tungsten carbide
Elastomers: NBR,EPDM,FKM
Seat metal: SS304,316
4. Applications:
Process industry
Chemical industry
Pulp and paper industry
Water and waste water technology
Sugar industry
Model & Specificaiton:
| Model(mm) | d | d1 | D | D1 | L | L1 | L2 | L3 | L4 | L5 |
| BGM 128-18 | 18 | 40 | 33 | 27 | 36 | 30 | 18 | 4 | 7 | 18 |
| BGM 128-20 | 20 | 40 | 35 | 29 | 36 | 29 | 18 | 4 | 7 | 18 |
| BGM 128-25 | 25 | 46 | 40 | 34 | 41 | 34 | 19 | 5 | 10 | 22 |
| BGM 128-30 | 30 | 52 | 45 | 39 | 44 | 37 | 19 | 5 | 10 | 25 |
| BGM 128-35 | 35 | 57 | 50 | 44 | 46 | 40 | 20 | 5 | 10 | 27 |
| BGM 128-40 | 40 | 64 | 58 | 51 | 49 | 42 | 20 | 5 | 11 | 29 |
| BGM 128-45 | 45 | 72 | 63 | 56 | 49 | 42 | 20 | 5 | 11 | 29 |
| BGM 128-50 | 50 | 76 | 70 | 62 | 55 | 47 | 21 | 6 | 11 | 34 |
| BGM128-55 | 55 | 82 | 75 | 67 | 56 | 48 | 22 | 6 | 11 | 34 |
| BGM 128-60 | 60 | 86 | 80 | 72 | 60 | 52 | 22 | 6 | 11 | 38 |
| BGM 128-65 | 65 | 92 | 85 | 77 | 62 | 54 | 22 | 6 | 11 | 40 |
| BGM 128-70 | 70 | 100 | 92 | 83 | 65 | 57 | 25 | 6 | 11 | 40 |
| BGM 128-75 | 75 | 105 | 97 | 88 | 65 | 57 | 25 | 6 | 11 | 40 |
| BGM 128-80 | 80 | 115 | 105 | 95 | 65 | 57 | 25 | 6 | 12 | 40 |
Company Profile
Guangdong Jiexin Seals Co., Ltd. is an enterprise specializing in the research and development, manufacturing and sales of mechanical seal products. The company has a first-class domestic R&D team, advanced automated production equipment and advanced testing equipment. The company’s products cover pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals,stainless steel mechanical seals. They are widely used in: aviation, aerospace, petroleum, chemical, electric power, metallurgy, food, pharmaceuticals, sewage treatment, agricultural irrigation, automotive water pumps and other industries. The company’s products have excellent performance, excellent workmanship, and durability, and are deeply trusted and praised by domestic and foreign users.
