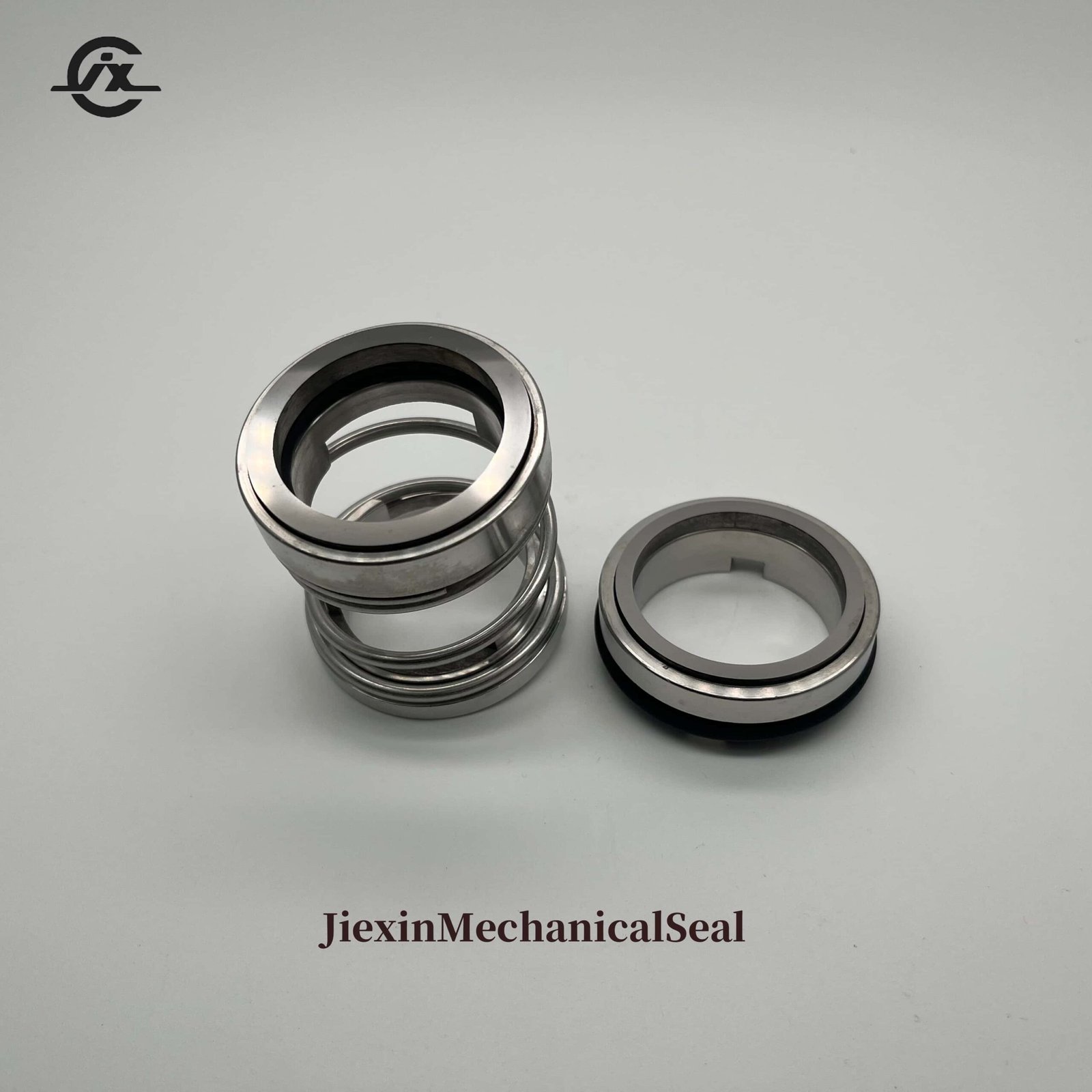

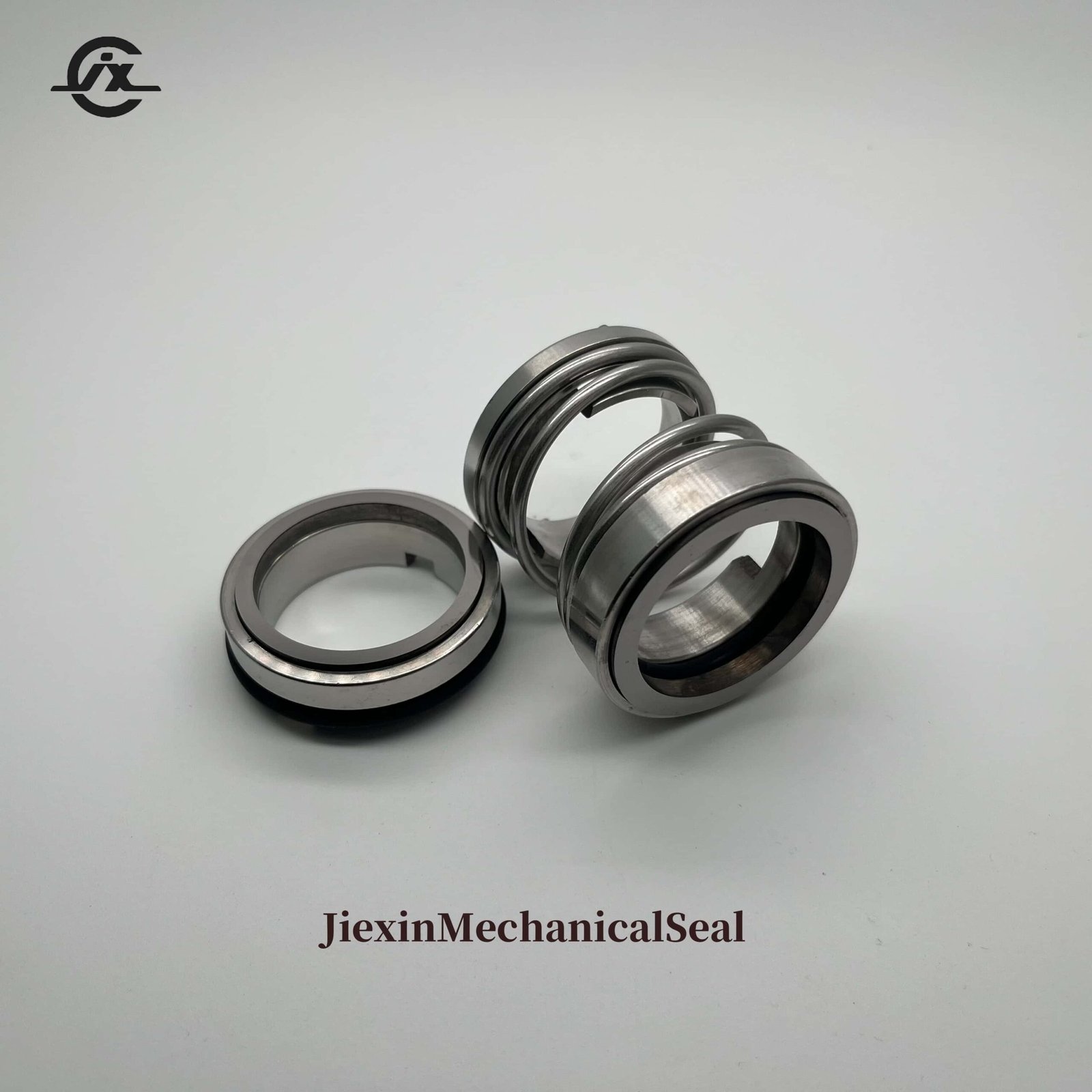

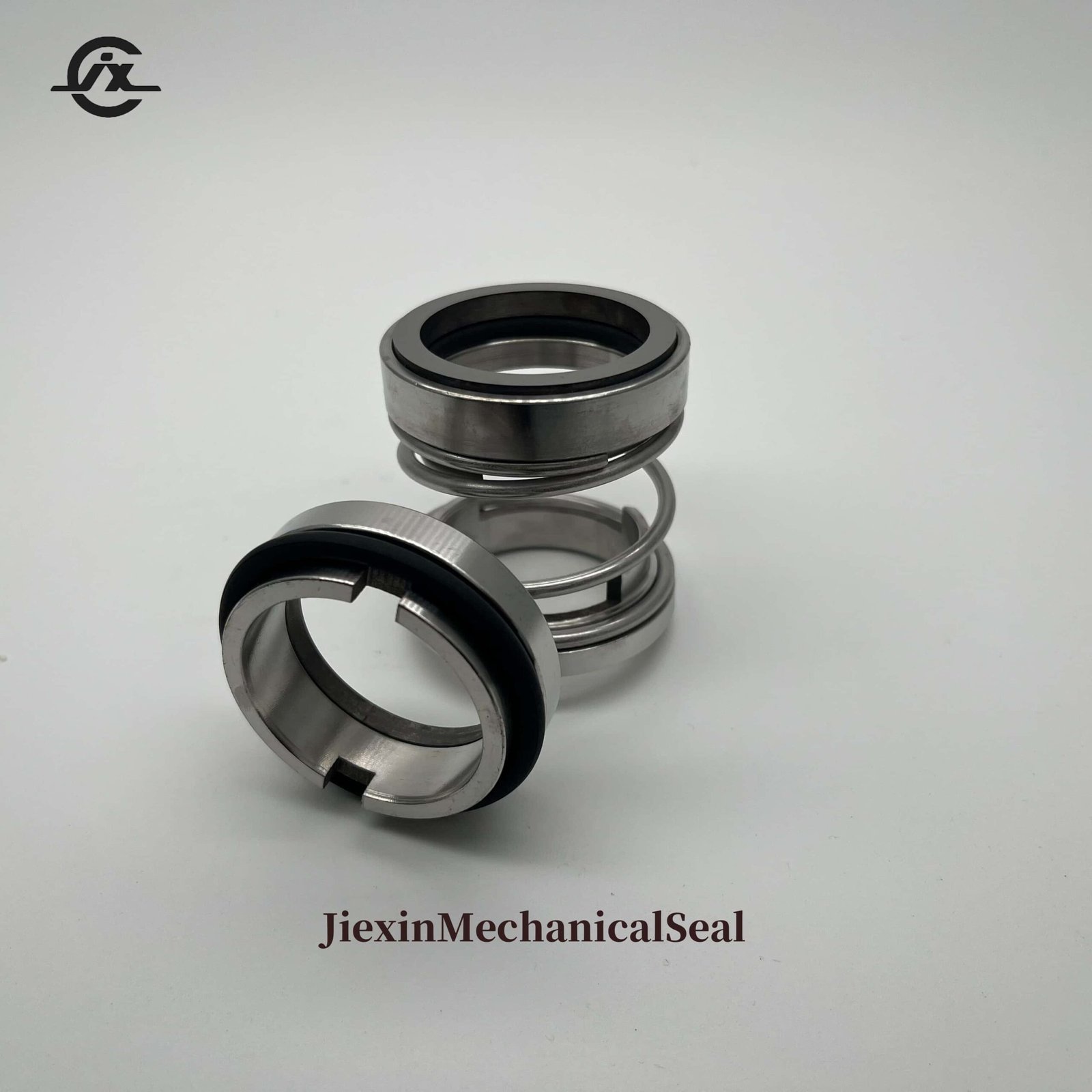

113A GX Centrifugal Pump Mechanical Seal 30mm Tungsten Carbide
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | JIEXIN |
| Model Number | BGM 113A GX |
| Order Information | Sample and batch orders available; confirm MOQ with quotation |
| Lead Time | Confirmed according to size, material and order quantity |
PRODUCT DESCRIPTION
113A GX Centrifugal Pump Mechanical Seal 30mm Tungsten Carbide
mechanical Seal Type GX 113A Pump Seal Mechanical Seal Tungsten Carbide
Basic Info.
Basic Info.
| Model NO. | BGM113A GX | Balance | Unbalanced |
| Spring | Single Spring | Trademark | JIEXIN |
| Transport Package | Carton or Plywood Box | Specification | ISO9001, SGS, Bureau Veritas |
| Origin | Shanghai China | HS Code | 84842000 |
BGM113A GX SERIES KELAN MECHANICAL SEALS
Applicable Range:
| Pressure in the seal chamber: 0-1.2MPa |
| Temperature in the seal chamber: -30ºC~180ºC |
| Linear Velocity: ≤ 10m/s |
| Medium: water, polluted water, oil and minor corrosive liquid |
Features:
| Complies with DIN24960 |
| Shaft diameter from 25mm to 80mm (Customized dimensions are available.) |
| Certificate: ISO9001:2008 |
| High quality and competitive price |
Materials:
| Rotating face: silicon carbide, graphite, tungsten carbide alloy. |
| Stationary face: silicon carbide, tungsten carbide alloy |
| Secondary seal: , NBR, EPDM, PTFE, FFKM. |
| Spring and Metal parts: SS, SS304, 316, 316L, HAST.B, C |
Applications:
| Chemical pump |
| Oil pump |
| Water and waste water technology |
| Pulp and paper industry |
| Sugar industry |
| Industrial pump |
| Model(mm) | d | d1 | d2 | D | D1 | L | L1 | L2 | L3 | L4 | L5 |
| BGM113-25 | 25 | 32 | 39 | 40 | 34 | 37 | 32 | 14 | 4 | 7.5 | 23 |
| BGM113-30 | 30 | 37 | 44 | 45 | 39 | 40 | 35 | 15 | 4 | 7.5 | 25 |
| BGM113-35 | 35 | 42 | 49 | 50 | 44 | 45 | 40 | 15 | 4 | 7.5 | 30 |
| BGM113-40 | 40 | 48.5 | 57 | 58 | 51 | 50 | 45 | 18 | 4 | 9 | 32 |
| BGM113-45 | 45 | 53.5 | 62 | 63 | 56 | 50 | 45 | 18 | 4 | 9 | 32 |
| BGM113-50 | 50 | 58.5 | 69 | 70 | 62 | 55 | 49 | 18 | 4 | 9.5 | 37 |
| BGM113-55 | 55 | 64.5 | 73 | 75 | 67 | 55 | 49 | 18 | 4 | 11 | 37 |
| BGM113-60 | 60 | 70 | 79 | 80 | 72 | 65 | 59 | 19 | 6 | 11.5 | 46 |
| BGM113-65 | 65 | 74.5 | 84 | 85 | 77 | 65 | 59 | 19 | 6 | 11.5 | 46 |
| BGM113-70 | 70 | 81 | 92 | 92 | 83 | 73 | 66 | 19 | 6 | 11.5 | 54 |
| NOTE:IF ADOPT STYLE AS THE LEFT OF THE GENERAL PICTURE SHOWS,SPRING SEAT SHOULD BE INSTALLED IN THE HEIGHT | |||||||||||
Company Profile
Guangdong Jiexin Seals Co., Ltd. is an enterprise specializing in the research and development, manufacturing and sales of mechanical seal products. The company has a first-class domestic R&D team, advanced automated production equipment and advanced testing equipment. The company’s products cover pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals,stainless steel mechanical seals. They are widely used in: aviation, aerospace, petroleum, chemical, electric power, metallurgy, food, pharmaceuticals, sewage treatment, agricultural irrigation, automotive water pumps and other industries. The company’s products have excellent performance, excellent workmanship, and durability, and are deeply trusted and praised by domestic and foreign users.
