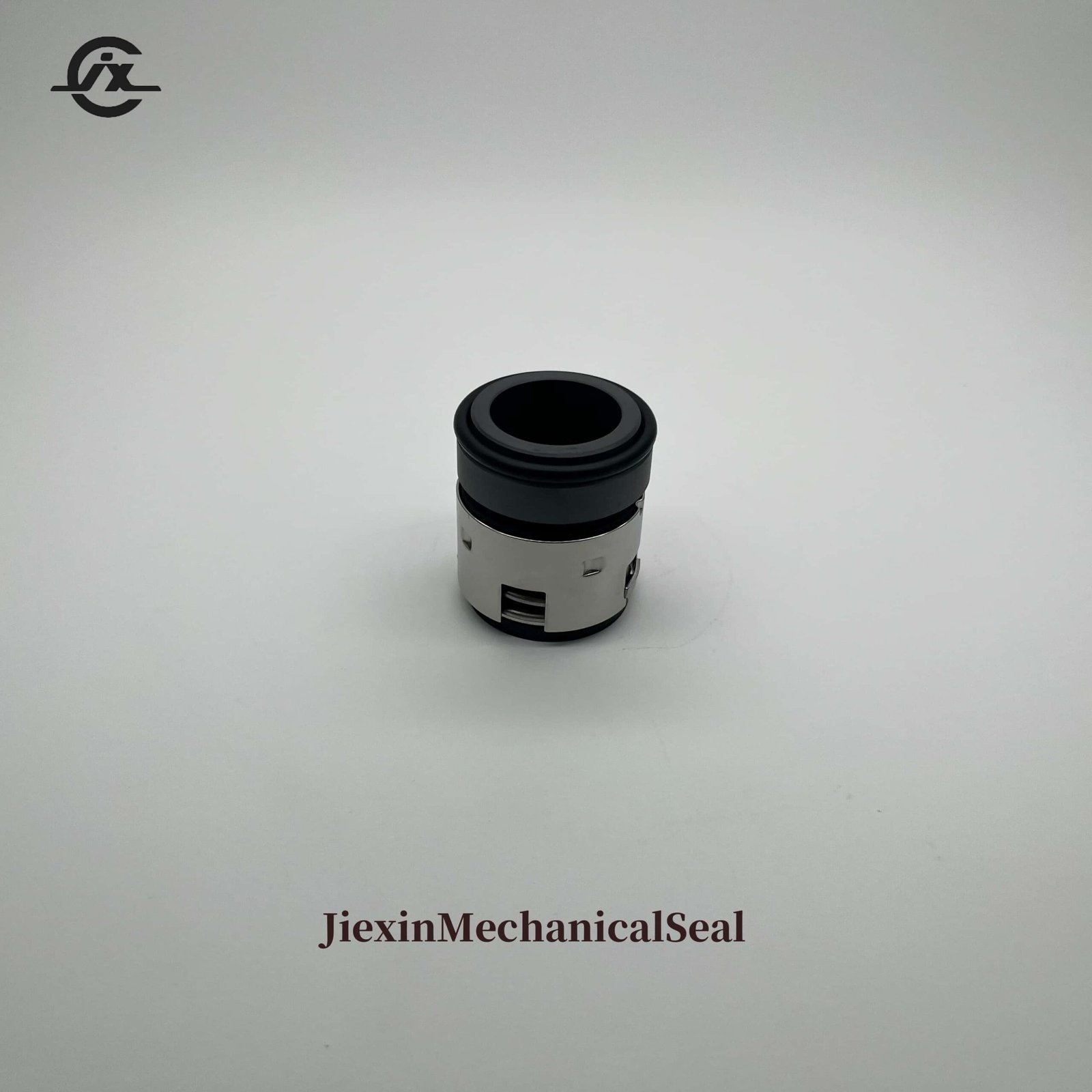

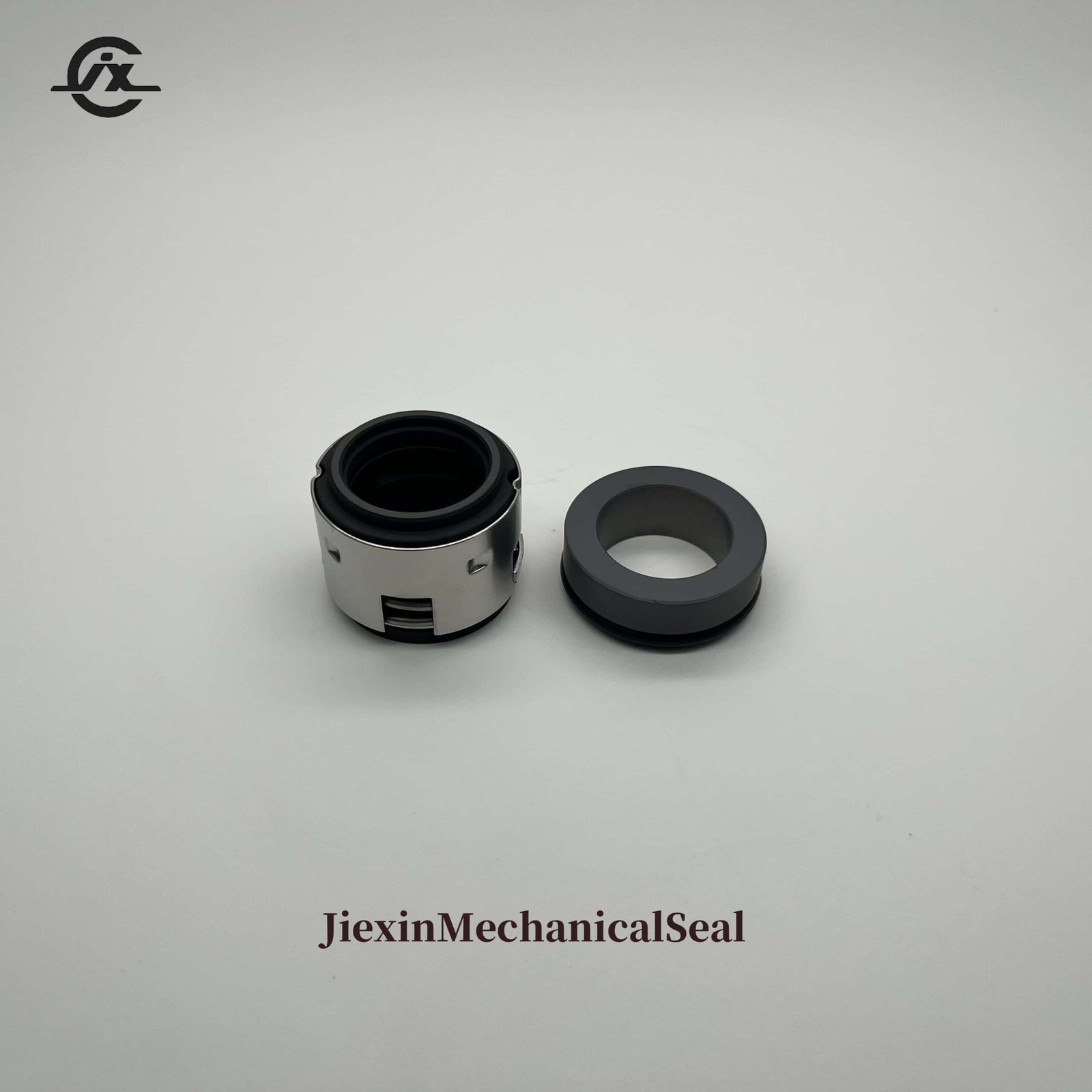

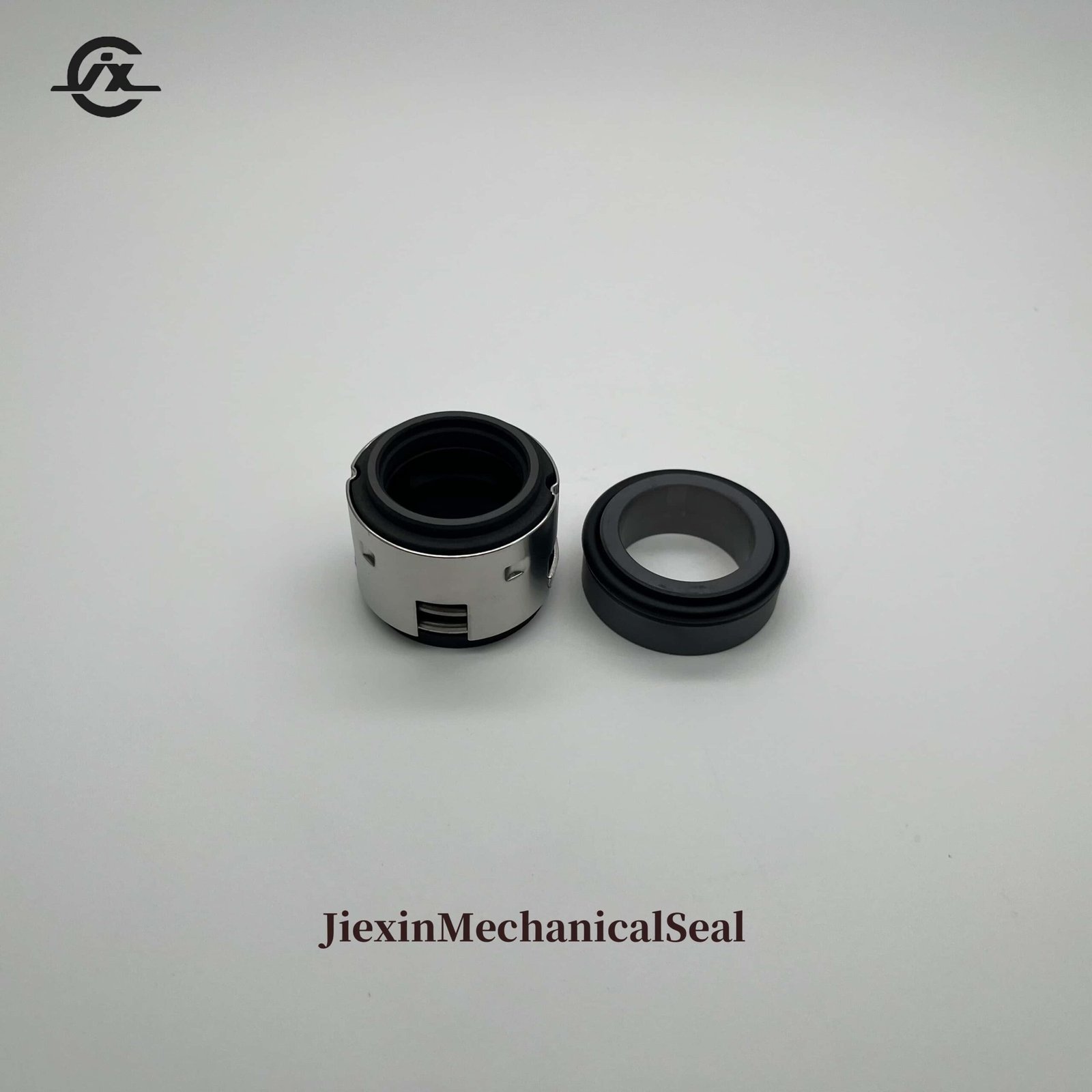

John Crane 502 Water Pump Mechanical Seal 100mm For Industrial Pumps
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | JIEXIN |
| Model Number | 502-14-100mm |
| Order Information | Sample and batch orders available; confirm MOQ with quotation |
| Lead Time | Confirmed according to size, material and order quantity |
PRODUCT DESCRIPTION
John Crane 502 Water Pump Mechanical Seal 100mm For Industrial Pumps
Mechanical Seal John Crane 502 Water Pump Seal Mechanical Seal
| Model NO. | BGM502 |
| Trademark | JIEXIN, Neutral or Customised |
| Origin | China |
| Balance | Unbalanced |
| Transport Package | JIEXIN, Neutral or Customised |
| HS Code | 84842000 |
Our mechanical seal model 502 can replace AESSEAL B07S and CRANE 502 ,which is widely used for industrial pumps. BO seat and BP seat are usually used for 502 type. The normal material combination include resin carbon/ceramic/nbr/ss304,resin carbon/tc/nbr/ss304,sic/sic/nbr/ss304 ,tc/tc/nbr/ss304 and so on. we also can make changes as customers’requirement or totally design a new type of mechanical seal to meet clients’needs.
BGM 502
Operating Limits:
| Pressure: | ≤4MPa |
| Speed: | ≤13m/s |
| Temperature: | -30ºC~+200ºC |
Rotary Ring (Carbon/SiC/TC)
Stationary Ring (99%Ceramic/SiC/TC)
Secondary SeaI (/NBR/EPDM)
Spring & Other Parts (SUS304/SUS316)
The standard seat for the BGM 502 seal is the BO seat (DIN24960). Alternative seats can also be used, such as the BP and BC seats.
| Seal size d(mm) |
d3 | d6 | d7 | l1k | l4 |
| 12 | 22.6 | 18.5 | 22.5 | 32.5 | 12.0 |
| 14 | 24 | 21 | 25 | 35.0 | 12.0 |
| 16 | 26 | 23 | 27 | 35.0 | 12.0 |
| 18 | 32 | 27 | 33 | 37.5 | 13.5 |
| 20 | 34 | 29 | 35 | 37.5 | 13.5 |
| 22 | 36 | 31 | 37 | 37.5 | 13.5 |
| 24 | 38 | 33 | 39 | 40.0 | 13.3 |
| 25 | 39 | 34 | 40 | 40.0 | 13.0 |
| 28 | 42 | 37 | 43 | 42.5 | 12.5 |
| 30 | 44 | 39 | 45 | 42.5 | 12.0 |
| 32 | 46 | 42 | 48 | 42.5 | 12.0 |
| 33 | 46 | 42 | 48 | 42.5 | 12.0 |
| 35 | 49 | 44 | 50 | 42.5 | 12.0 |
| 38 | 54 | 49 | 56 | 45.0 | 13.0 |
| 40 | 56 | 51 | 58 | 45.0 | 13.0 |
| 43 | 59 | 54 | 61 | 45.0 | 13.0 |
| 45 | 61 | 56 | 63 | 45.0 | 13.0 |
| 48 | 64 | 59 | 66 | 45.0 | 13.0 |
| 50 | 66 | 62 | 70 | 47.5 | 13.3 |
| 55 | 71 | 67 | 75 | 47.5 | 13.3 |
| 60 | 80 | 72 | 80 | 52.5 | 13.3 |
| 65 | 85 | 77 | 85 | 52.5 | 13.3 |
| 70 | 89 | 83 | 92 | 60.0 | 14.5 |
| 75 | 96 | 88 | 97 | 60.0 | 14.5 |
| 80 | 104 | 95 | 105 | 60.0 | 15.0 |
| 85 | 108 | 100 | 110 | 60.0 | 15.0 |
| 90 | 114 | 105 | 115 | 65.0 | 15.0 |
| 95 | 118 | 110 | 120 | 65.0 | 15.0 |
| 100 | 124 | 115 | 125 | 65.0 | 15.0 |
Company Profile
Guangdong Jiexin Seals Co., Ltd. is an enterprise specializing in the research and development, manufacturing and sales of mechanical seal products. The company has a first-class domestic R&D team, advanced automated production equipment and advanced testing equipment. The company’s products cover pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals,stainless steel mechanical seals. They are widely used in: aviation, aerospace, petroleum, chemical, electric power, metallurgy, food, pharmaceuticals, sewage treatment, agricultural irrigation, automotive water pumps and other industries. The company’s products have excellent performance, excellent workmanship, and durability, and are deeply trusted and praised by domestic and foreign users.
